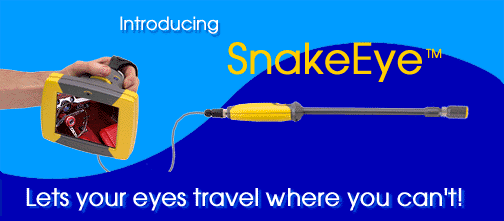

| Hand Held
Display Unit
|
|
| SnakeEye™'s lightweight,
compact display unit (less than 2 lbs.) houses a high resolution (960
x 234) full color 5" TFT-LCD display and rechargeable
battery pack. The display screen has a built-in protective, plastic
cover and can be rotated to maintain proper image orientation for the
viewer.
|
|
| Designed for easy one-handed
operation, the display unit contains three color-coded push button controls:
Power On/Off, Camera Head Light On, low, medium, high or Off for operating
in low light conditions, and an image orientation control that rotates
the image 180 with the touch of this control switch.
|
|
|
| Two
ports at the base of the display unit allow for additional plug-in capabilities:
Video In/Out connects to a standard VCR, a computer equipped with an analog
to digital "frame grabber", or to some handycams that have a
video "in" port for image recording and playback; AC/DC adapter
and 12 volt auto adapter allow for continuous non-battery power operation.
|
|
|
|
| Removable
Camera Head
|
|
|
| SnakeEye™
is equipped with a high speed CCD color camera with built-in 3 level (low,
medium and high) LED illumination that delivers clear images in low light
conditions, constant image clarity with variable object distance and minimum
image distortion. The camera head contains four white LED's, which are
controlled by the Camera Head Light button on the display unit.
|
|
|
| The water resistant camera head
is 1.32" in diameter and is ruggedized for optimum performance in
harsh environmental conditions. When used in combination with the rigid
wand, the camera head can be vertically articulated up to 90°.
|
|
|
|
|
|
Interchangeable Camera Head Adapters
|
|
|
|
| SnakeEye™ incorporates a series of fully interchangeable camera head adapters to allow for multiple uses. A 4' Superflex Cable connects the display unit to the rigid wand and the ring adapter.
|
|
|
| Rigid Wand Adapter
|
|
|
| The SnakeEye™
Rigid Wand Adapter is 18" long and contains a SureGrip handle
as well as a swivel feature that allows the user to vertically articulate
the camera up to 90°. The rigid wand configuration is designed to insert
the camera into hard to reach spaces such as overhead air ducts and behind
walls.
|
|
|
|
|
| Ring Adapter
|
|
|
| The SnakeEye™ Ring
Adapter literally puts the camera on the user's finger. The ring adapter
is designed to provide finger tip control of the camera in hard
to see but reachable spaces such as underneath automobile dashboards
and any place your hand can reach but your vision is obstructed.
|
|
|
| Extension
Cable Adapters
|
|
|
| SnakeEye™ extension cable adapters are comprised of heavy duty, plastic coated cable designed for use in harsh environments. These extension cables are available in multiple lengths and are suited for
deep insertions such as chimney, pipe, and tank inspections.
|
|
|
| Power
System
|
|
|
|

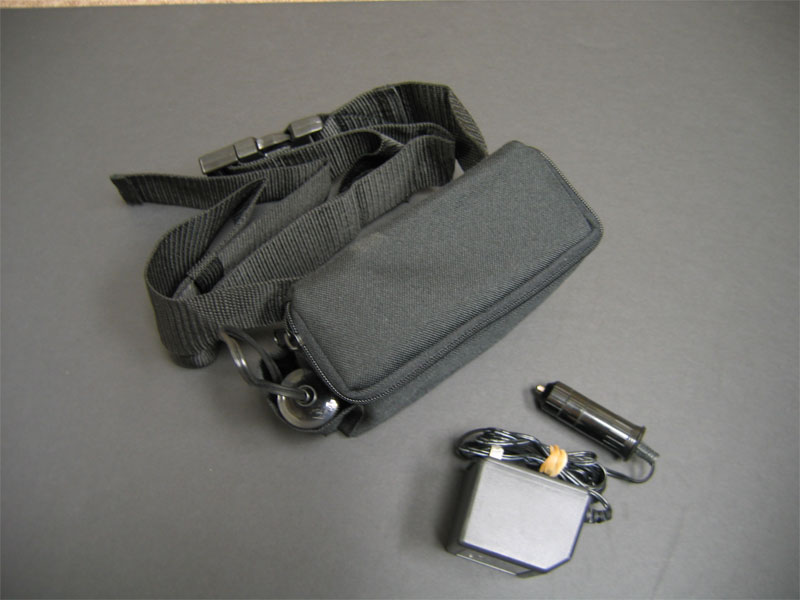

| SnakeEye™ comes equipped with a rechargeable Nickel-Metal
Hydride battery pack and charger. The battery pack provides up to 60 minutes
of continuous operation.
|
|
|
| In addition to an On/Off control,
SnakeEye™'s power management system contains a Low Battery Indicator
that alerts the user when 75 seconds of the battery power is remaining,
and an Auto Shut-Off feature when the battery voltage falls too low.
|
|
|
| Accessories
|
|
|
| The following accessories are available to extend the range and utility of the SnakeEye™ remote video inspection system:
|
|
|
|
|
|
|
| Carrying Case
|
|
|
|
| SnakeEye™ is packaged
in a lightweight briefcase style Carrying Case (17" x 16" x
6") for easy portability. Its rugged plastic composition is designed
to withstand harsh treatment while protecting the unit.
|
|
|
